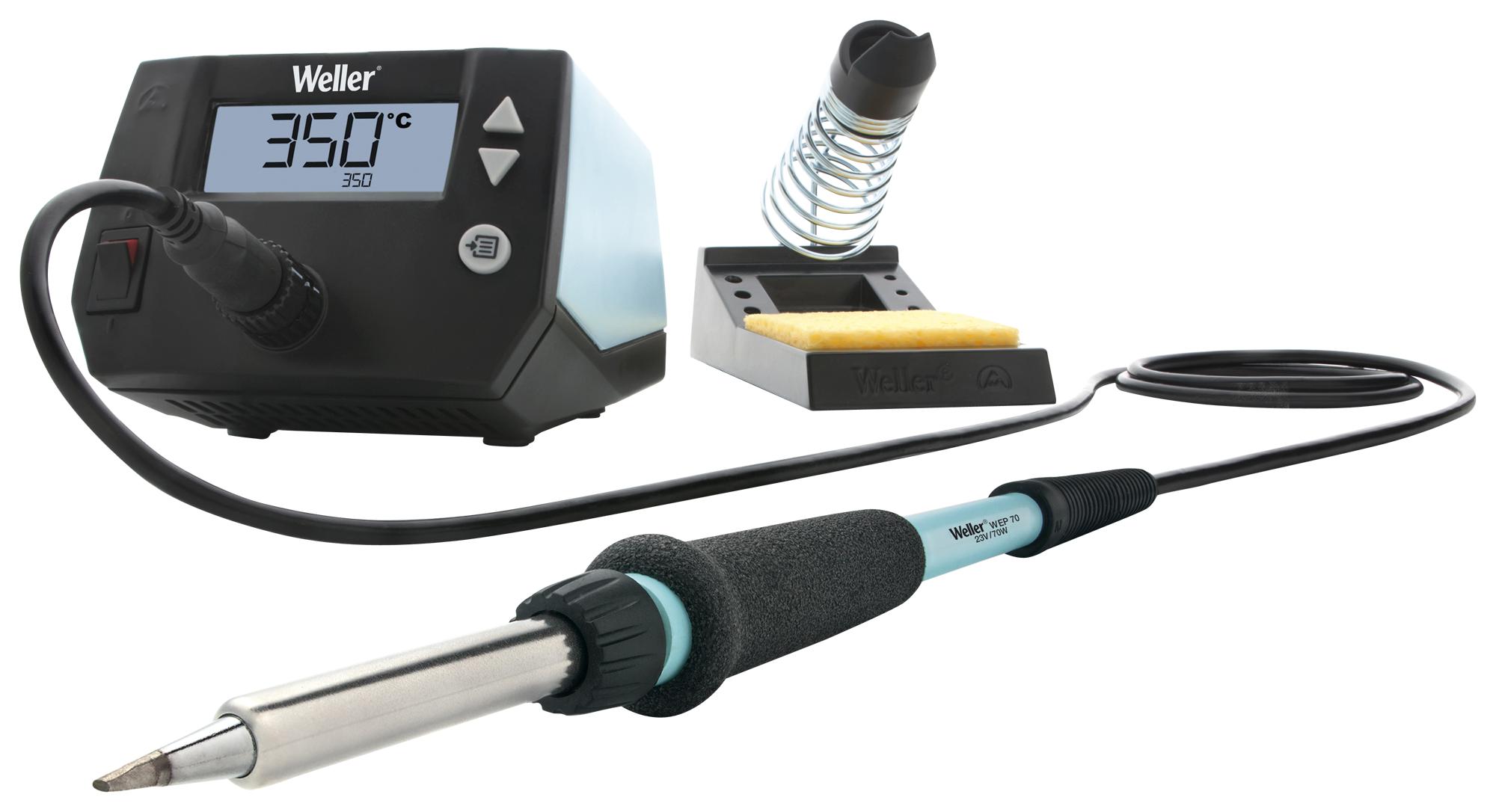

Weller WE 1010

Soldering Station

The Weller WE1010 is a digitally-controlled, single-channel soldering station designed to meet both professional and advanced hobbyist requirements. It features an 70 W power unit, rapid heat-up time (≈ 28 seconds from 50–350 °C) and a high degree of temperature stability and control—allowing the user to reliably solder precise electronics with minimal drift. Its compact size, high precision and professional-grade specification make it suitable for PCB work, repair, prototyping and small-batch manufacturing scenarios—while offering strong value in educational or workshop settings. The WE1010 thus occupies a versatile middle ground between hobby-level soldering irons and the high-end industrial stations.

Technical Specifications

Feature	Specification
Number of channels	1 channel (single-station)
Power	70 W nominal soldering iron output
Voltage	230 V / 50-60 Hz (EU version)
Temperature range	100 °C to 450 °C (≈ 200 °F to 850 °F)
Heating time	Approx. 28 seconds from 50–350 °C
Temperature accuracy	±5 °C (≈ ±9 °F)
Temperature stability	±2-6 °C (±4-10 °F)
Dimensions (L × W × H)	Approx. 150 × 120 × 98 mm
Weight	~1.4 kg
ESD safe	Yes — station, iron and cable are ESD-safe certified
Tip system	ET series tips, tool-less change on the WEP70 iron
Standby / Auto-setback features	Yes — reduces temperature when idle to conserve tip life & energy
Display / Controls	Digital LCD screen with push-buttons, front power switch

Highlights

Tool-less tip change (for the compatible ET tip series)
Ergonomic handle
Digital LCD display with intuitive controls
Password-protected settings
Standby/auto-setback modes for energy/tip-life saving
ESD-safe design for use in sensitive electronics environments
