Vevor RS-2

Vacuum pump & Vaccum Chamber

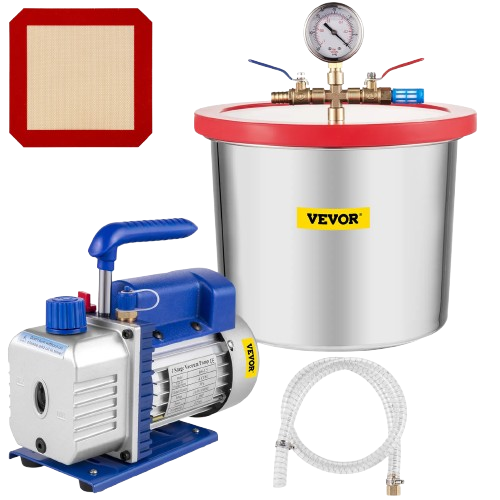

The VEVOR RS-2 Vacuum Pump Kit is a compact single-stage rotary vane vacuum pump system bundled with a vacuum chamber. Designed for general laboratory, workshop or hobby use such as resin/epoxy degassing, wood stabilisation, HVAC maintenance, and vacuum packaging, it delivers a flow rate of approximately 5 CFM (≈141 L/min) and a theoretical ultimate vacuum of around 5 Pa. The kit includes a clear-lid stainless steel chamber, reinforced hose, and oil-filled pump with viewing window to ensure ease of monitoring and operation. Its design emphasises functionality and affordability for environments where high vacuum precision is not essential but adequate performance is required.

Technical Specifications

Feature	Specification
Model	VEVOR RS-2 Vacuum Pump Kit
Pump Type	Single-stage rotary-vane vacuum pump
Free Air Displacement	~5 CFM (≈141 L/min)
Power Rating	1/3 HP
Ultimate Vacuum	~5 Pa
Oil Capacity	~250 ml
Voltage / Frequency	110 V AC / 60 Hz or 230 V AC / 50 Hz (depending on version)
Chamber Capacity	~5 gallons (≈19 L)
Hose Length	~1 m (≈3.28 ft)
Lid Thickness	~1.9 cm (≈3/5 in)
Intended Uses	Degassing epoxies/resins, wood stabilising, packaging, HVAC servicing
Kit Accessories	Transparent-lid chamber, reinforced hose, gasket, pump, oil fill/view window
