Vaquform DT2

Desktop Vacuum Former

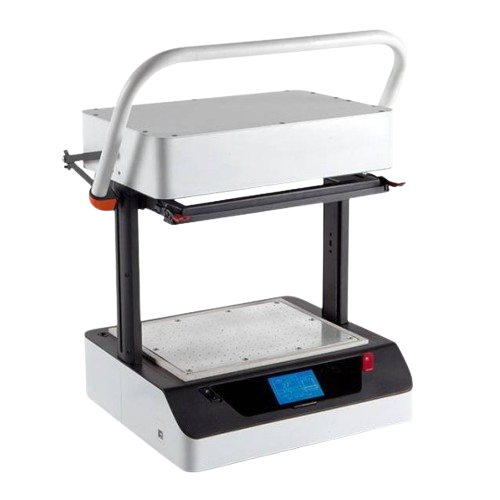

The Vaquform DT2 is a desktop digital vacuum-forming machine engineered to bring industrial-grade thermoforming capabilities into a compact, user-friendly format. Ideal for prototyping, custom part production, small-batch manufacturing and creative applications, the DT2 integrates a high-performance hybrid vacuum system, precision temperature monitoring, and automated forming cycles. With a forming area of 280 × 200 mm and support for sheet materials up to 3.0 mm thick, it enables detailed moulds, enclosures, packaging, and custom components without minimum-order constraints. The intuitive interface, built-in heater control and robust construction make the Vaquform DT2 a versatile solution for designers, makers, engineers and small businesses seeking rapid turnaround and repeatable quality.

Technical Specifications

Feature	Specification
Sheet Size (maximum)	330 mm × 250 mm
Maximum Sheet Thickness	3.0 mm
Minimum Sheet Thickness	0.2 mm
Forming Area	280 mm × 200 mm
Maximum Depth Draw	200 mm
Overall Dimensions (width x height x depth)	400 x 405 x 335 mm
Weight	9 kg
Standard Input Voltage	100-240 V (50/60 Hz)
Standard Wattage	1320W
Heater Temperature (max)	Up to 250 °C
Noise Level	~65 dB

Highlights

Vacuum System : Built-in hybrid vacuum (high-speed turbine + compressor) achieving approx. –85kPa suction.
Interface / Controls : LCD interface, material profiles, real-time temperature sensor for forming consistency.
Applications : Prototyping, packaging, custom moulds, model making, dental, cosplay, electronics enclosures.
