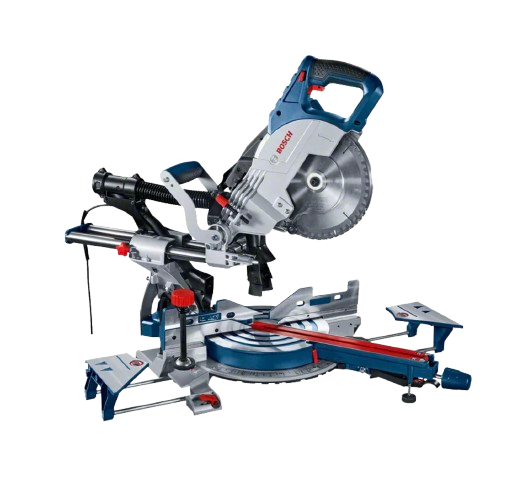

Bosch GCM 8 SJL

Sliding Mitre Saw

The Bosch GCM 8 SJL is a compact and powerful 216 mm sliding mitre saw designed for professional woodworkers and installers. With a cutting capacity of up to 70 mm vertically and an extendable cutting width of 312 mm, it’s ideal for baseboards, crown moulding, decking, and general carpentry. Its lightweight design and integrated dust extraction make it perfect for workshop and on-site use.

Technical Specifications

Specification	Details
Input power	1,600 W
No-load speed	5,500 rpm
Blade diameter	216 mm
Blade bore	30 mm
Max cutting capacity (0°)	70 x 312 mm
Max cutting capacity (45° mitre)	70 x 214 mm
Max cutting capacity (45° bevel)	48 x 312 mm
Mitre setting range	52° left / 60° right
Bevel setting range	47° left
Weight	17.3 kg
Dimensions (W x D x H)	91 x 46 x 41 cm
Dust extraction connection	35 mm diameter
Vibration level	2.5 m/s² (uncertainty: 1.5 m/s²)
Sound pressure level	95 dB(A)
Sound power level	104 dB(A)
Warranty	3 years (with online registration)

Key Features

High cutting capacity: 70 mm vertical and 312 mm horizontal capacity.
Precision slide mechanism: For accurate and controlled movements.
Lightweight design: Weighing only 17.3 kg for easy transport and setup.
Integrated dust extraction: Dual-point system for cleaner work environment.
Adjustable bevel and mitre angles: Offers flexibility for angled cuts and compound mitres.
Soft grip handles: Improve control and comfort during prolonged use.
Laser line guide (on select models): Ensures exact alignment before cutting (check availability).

Recommended Applications

Cutting baseboards, crown mouldings, and wall panels.
Mitre and bevel cuts in wood, laminate, and soft plastics.
Ideal for interior finishing, decking, furniture installation, and framing.

Safety Guidelines

Always secure workpieces with clamps or the integrated fence.
Wear hearing protection, safety glasses, and dust mask.
Keep hands away from blade area and use the push handle when necessary.
Disconnect power before changing the blade or adjusting the saw.

Maintenance & Care

Clean rails and blade guard regularly to maintain smooth movement.
Use only sharp and compatible 216 mm blades.
Store the saw in a dry place and cover it when not in use.
Check carbon brushes periodically if the saw is heavily used.

Additional Information

Included accessories: Saw blade, dust bag, work clamp, user manual.
Compatible blades: Bosch Expert and Standard 216 mm blades.
Official product code: 0601B19100
