Siglent SDS1202X-E

Digital Storage Oscilloscope

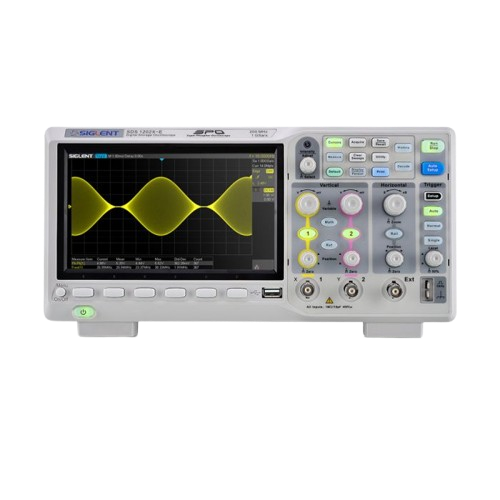

The Siglent SDS1202X-E is a two-channel digital storage oscilloscope that delivers excellent performance, versatility, and value for a wide range of testing and debugging tasks. Designed with Siglent’s Super Phosphor Oscilloscope (SPO) technology, it provides high waveform capture rates, low noise, and enhanced signal fidelity. The SDS1202X-E features a bandwidth of 200 MHz, a real-time sampling rate of up to 1 GSa/s, and deep memory for detailed signal analysis. Its intuitive 7-inch display, advanced triggering, and decoding capabilities make it ideal for both educational environments and professional electronic design and troubleshooting applications.

Technical Specifications

Feature	Specification
Model	Siglent SDS1202X-E
Number of Channels	2
Bandwidth	200 MHz
Real-Time Sampling Rate	1 GSa/s (single channel), 500 MSa/s (dual channel)
Memory Depth	14 Mpts per channel
Waveform Capture Rate	Up to 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Vertical Resolution	8 bits
Vertical Scale	500 µV/div to 10 V/div
Time Base Range	1 ns/div to 100 s/div
Input Impedance	1 MΩ ±2%, 16 pF ±3 pF
Trigger Types	Edge, Slope, Pulse, Video, Window, Runt, Interval, Dropout, Pattern
Acquisition Modes	Normal, Average, Peak Detect, Sequence
Math Functions	+, −, ×, FFT, integration, differentiation
Serial Bus Decoding	I²C, SPI, UART, CAN, LIN (optional)
Display	7-inch TFT-LCD, 800 × 480 pixels
Connectivity	USB Host/Device, LAN (VXI-11, LXI Core), External Trigger
Update Rate	Up to 400,000 wfm/s
Technology	SPO (Super Phosphor Oscilloscope)
Dimensions (W × H × D)	Approx. 323 mm × 136 mm × 157 mm
Weight	Approx. 2.5 kg
