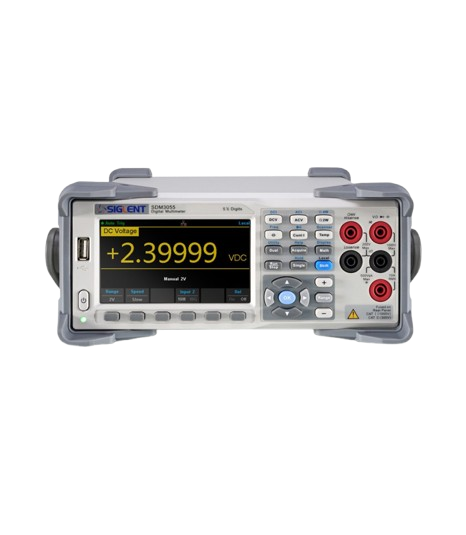

Siglent SDM3055

Digital Multimeter

The Siglent SDM3055 is a high-performance 5½-digit dual-display digital multimeter designed for laboratory, R&D, production test, and calibration environments. It offers a real resolution of 240,000 counts, true-RMS measurement of AC voltage and current, and a read-out speed up to 150 readings per second. The instrument includes a large 4.3″ colour TFT-LCD display (480×272) with advanced visualization features (trend, histogram, bar chart), a 1 GB NAND flash for mass storage of configuration and data files, and communication interfaces (USB device/host, LAN) for remote control via SCPI/USB-TMC. It supports a wide range of measurement functions (DC/AC voltage, DC/AC current, resistance, capacitance, diode/continuity, frequency/period, temperature via TC/RTD), making it a versatile bench instrument. In essence, the SDM3055 combines high-accuracy measurement, fast sampling, advanced data handling and connectivity – suitable for demanding test benches where precision and flexibility matter.

Technical Specifications

Feature	Specification
Resolution	5½ digits (240,000 counts)
Maximum reading speed	Up to 150 readings per second
DC voltage range	200 mV – 1000 V
DC voltage accuracy (1 year)	±(0.015 % of reading + 0.003 % of range)
AC voltage range	200 mV – 750 V (True RMS)
DC current range	200 µA – 10 A
AC current range	Up to 10 A (True RMS)
Resistance measurement	200 Ω – 100 MΩ (2- and 4-wire)
Capacitance measurement	2 nF – 10,000 µF
Frequency range	20 Hz – 1 MHz
Display	4.3″ TFT-LCD (480×272), dual-display mode
Internal memory	1 GB NAND flash + USB host support
Interfaces	USB Device, USB Host, LAN (GPIB optional)
Built-in functions	Trend chart, histogram, bar chart, max/min/avg, pass/fail limits
Software compatibility	SCPI command set, EasyDMM software, LabVIEW integration
Power supply	100–240 V AC, 50/60 Hz
Dimensions (W × H × D)	Approx. 282 × 105 × 260 mm
Weight	≈ 3.3 kg
