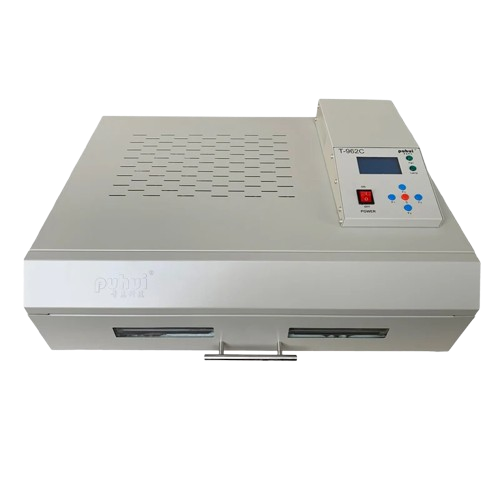

Puhui T962C

Infrared IC Heater / Reflow Oven

The Puhui T962C is a bench-top infrared IC heater / reflow oven designed for SMD and BGA rework, prototyping, and small-batch production. It features a large drawer-type heating chamber (400 × 600 mm) enabling processing of relatively large PCBs, combined infrared radiation and forced-air circulation for even temperature distribution, and memory for up to eight pre-set temperature profiles (pre-heat, soak, reflow, cooling). With a rated power around 2 500 W and process cycles ranging 1–8 minutes, the T962C offers an automated workflow for soldering, desoldering or re-flowing assemblies such as CHIP, SOP, QFP, PLCC and BGA. It is suited for electronics labs, repair benches or production environments where larger boards and flexible re-flow capability are required.

Technical Specifications

Feature	Specification
Model	Puhui T962C
Type	Infrared IC heater / bench reflow oven
Effective Soldering Area	400 × 600 mm (drawer size)
Rated Power	~2 500 W
Temperature Range	0 °C – 280 °C
Process Cycle / Time	1 – 8 min (depending on board & profile)
Preset Temperature Profiles	Up to 8 memory-profiles (preheat → soak → reflow → cool)
Heating Method	Infrared radiation + forced-air circulation
Power Supply / Voltage	AC 110 V / 220 V (50/60 Hz)
Drawer Dimension / Unit Size	Approx. 684 × 504 × 225 mm
Net Weight	Approx. 25 kg
Application	SMD/BGA rework, small batch production, prototyping
