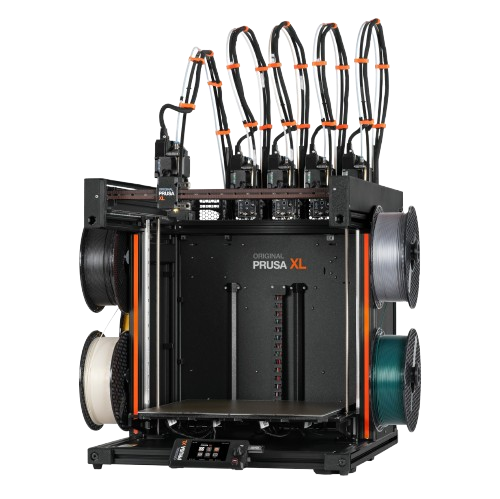

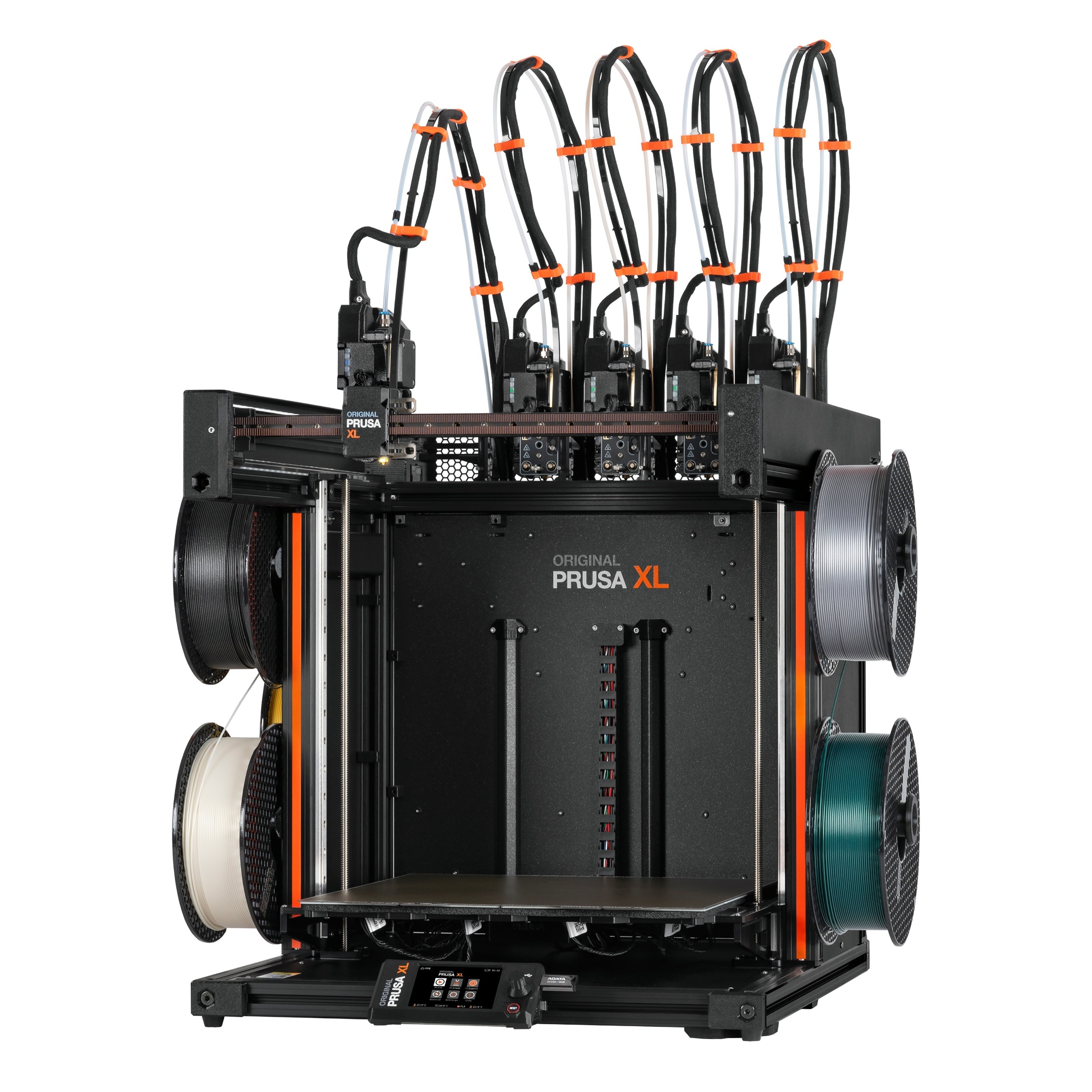

Prusa XL

FDM Printer

The Prusa XL 5-Head is a cutting-edge multi-material 3D printer designed to maximize versatility and efficiency in professional and industrial environments. Featuring five independent extruders, it allows for simultaneous multi-material printing, enabling complex and intricate designs with unmatched precision. With its advanced features such as auto-bed leveling, large print volume, and robust reliability, the Prusa XL 5-Head is ideal for rapid prototyping, small-batch manufacturing, and high-quality production runs. This innovative machine simplifies complex workflows and unlocks new possibilities for creative professionals and engineers alike.

The Prusa XL is a large-format, high-precision 3D printer that offers a wide range of possibilities thanks to its spacious build plate and multi-tool head (with up to 5 extruders). It allows for the printing of large parts in a single run, such as automotive fairing prototypes, modular furniture, or cosplay costumes. With its multi-material capability, it can print objects combining PLA for structure, TPU for flexible zones (like custom shoe soles), and PVA for soluble supports that make it easier to print complex shapes. The Prusa XL is also ideal for producing custom molds or tooling, for example in crafts or jewelry making. Finally, it is particularly appreciated in education and research for creating anatomical models, functional prototypes, or even mechanical parts that can be assembled straight out of the printer.

Specifications

Measurements
Build Volume : 360×360×360 mm (14.17’’×14.17’’×14.17’’)
Filament diameter : 1.75 mm
Layer height : 0.05-0.30 mm
Printer dimensions : 700 mm (w) × 900 mm (h) × 720 mm (d) (27.5’’×35.5’’×28.5’’) (including side spoolholders and the separate top enclosure cover)
Printer weight (without spool) : 33.7 kg (five-head)

Electronics
Mainboard : Custom 32-bit xBuddy electronics with STM32
Stepper Drivers : Trinamic 2130
Stepper motors : 1.8°

Extruder
Extruder : Nextruder, Direct Drive, E3D V6 compatible (with adapter)
Extruder electronics : Custom breakout board for connecting fans, thermistors and other parts
Filament path : Aluminum heatsink, all-metal hotend
Drive system : Nextruder Planetary Gear System, 10:1 gearbox ratio

Nozzle
Max nozzle temperature : 290 °C / 554 °F
Max heatbed temperature : 115 °C / 239 °F

Controls
LCD screen : 3.5″ graphic 65k color screen
Connectivity : ESP Wi-Fi module
Print medium : USB drive / LAN / internet via Prusa Connect

Sensors
Advanced sensors : Filament sensor, Loadcell sensor, Power panic, 4 high-precision thermistors (genuine Semitec) + fan motors RPM monitoring

Print surface
Print surface : Segmented heatbed with 16 individually controlled segments, removable magnetic steel sheets with different surface finishes

Calibration
Bed calibration : Automatic, Mesh Bed Leveling (only on print area)

Materials
Supported materials : PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and when using the Original Prusa Enclosure with filtration add-on ABS, ASA, HIPS, PA*

Power
PSU : 240W, custom made by Delta with Power Panic HW
Average power draw on stand-by : 80W
Average power draw while heating up before calibration : 550W
Average power draw while printing : 235W
