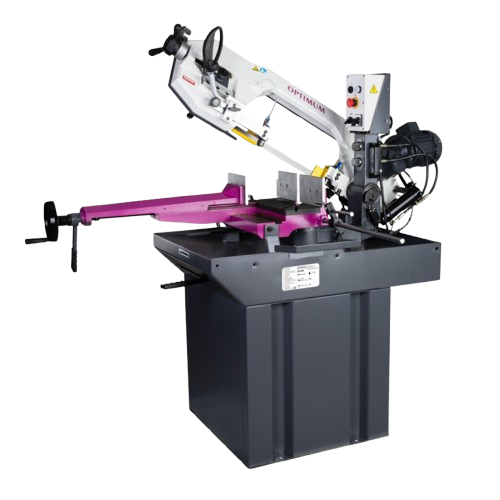

Optimum SD285

Metal Band Saw

The Optimum SD285 is a robust metal band saw designed for professional workshops. Featuring a durable cast iron frame, adjustable saw bow, and variable cutting angles from -45° to +60°, it ensures precise and efficient cutting of various metal materials. Equipped with a 1.1 kW motor and a hydraulic descent system, this machine is ideal for both small and large-scale metalworking tasks.

Technical Specifications

Specification	Details
Motor Power	1.1 kW (1.5 HP)
Voltage	400 V
Cutting Speeds	45 m/min and 90 m/min
Blade Length	2480 mm
Blade Width	27 mm
Blade Thickness	0.9 mm
Cutting Angle	-45° to +60°
Cutting Capacity (Round)	235 mm
Cutting Capacity (Square)	235 mm
Machine Dimensions (L x W x H)	1450 x 550 x 1580 mm (with bow in lowest position)
Weight	245 kg

Key Features

Adjustable Saw Bow: Allows for versatile cutting angles from -45° to +60°, accommodating various material shapes and sizes.
Hydraulic Descent System: Ensures smooth and controlled lowering of the saw bow, enhancing cutting precision and safety.
High-Quality Blade: Comes equipped with a bi-metal HSS blade, offering durability and sharpness for extended use.
Quick-Clamping Vice: Facilitates fast and secure clamping of workpieces, reducing setup time.
Coolant System: Integrated system to cool the blade and workpiece, prolonging tool life and improving cut quality.
Robust Cast Iron Frame: Provides stability and reduces vibrations, ensuring accurate cuts.

Recommended Applications

Cutting of ferrous and non-ferrous metals.
Ideal for workshops, fabrication shops, and maintenance departments.
Suitable for tasks requiring precise and clean cuts, such as pipe cutting, bar stock, and structural components.

Safety Guidelines

Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
Ensure the machine is properly grounded and all safety guards are in place before operation.
Regularly inspect the blade for wear and replace as necessary.
Keep the work area clean and free from obstructions to prevent accidents.

Maintenance & Care

Regularly check and maintain the hydraulic system to ensure proper function.
Clean the coolant system and replace the fluid as recommended by the manufacturer.
Lubricate moving parts as per the maintenance schedule to ensure smooth operation.
Store the machine in a dry, clean environment to prevent corrosion and damage.

Additional Information

Included Accessories: Bi-metal HSS blade, adjustable material stop, coolant system, quick-clamping vice.
Warranty: 2 years (extendable with online registration).
Product Code: 3300286
