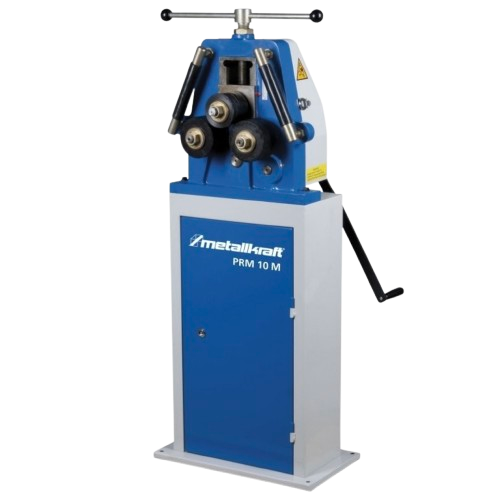

Technical Specifications
| Specification | Details |
|---|---|
| Operation | Manual crank, horizontal or vertical setup :contentReference[oaicite:1]{index=1} |
| Roller Shaft Diameter | 28–30 mm :contentReference[oaicite:2]{index=2} |
| Upper Roller Diameter | 98 mm :contentReference[oaicite:3]{index=3} |
| Lower Roller Diameter | 115–118 mm :contentReference[oaicite:4]{index=4} |
| Max Bending Capacity (Square) | 20 × 20 × 2 mm → Ø 500 mm; 30 × 30 × 2 mm → Ø 900 mm :contentReference[oaicite:5]{index=5} |
| Max Bending Capacity (Round) | Ø 27 mm → Ø 500 mm; Ø 17 mm → Ø 160 mm :contentReference[oaicite:6]{index=6} |
| Max Bending Capacity (Flat) | 40 × 5 mm → Ø 160 mm; 50 × 10 mm → Ø 400 mm :contentReference[oaicite:7]{index=7} |
| Weight (net) | 165 kg :contentReference[oaicite:8]{index=8} |
| Dimensions (L × W × H) | 620 × 560 × 1440 mm :contentReference[oaicite:9]{index=9} |
| Product Code | 3780010 |
Key Features
- Heavy cast-iron frame ensures rigidity and minimal vibration. :contentReference[oaicite:10]{index=10}
- Dual hardened steel rollers, precision ground for accurate bending. :contentReference[oaicite:11]{index=11}
- Manual crank operation, no power needed—ideal for workshops without electric access. :contentReference[oaicite:12]{index=12}
- Versatile orientation, can be used horizontally or vertically. :contentReference[oaicite:13]{index=13}
- High-capacity bending, including square, round, and flat stock across multiple diameters. :contentReference[oaicite:14]{index=14}
- Robust gearing system with steel shafts and machined gears. :contentReference[oaicite:15]{index=15}
- Storage cabinet stand included for workshop organization. :contentReference[oaicite:16]{index=16}
Recommended Applications
- Rolling tubes, round bars, and profiles for metal furniture, railings, or fabrication assemblies.
- Creating rings, flanges, and curved sections for architectural metalwork.
- Compact workshops, fabrication shops, or mobile setups requiring flexible bending capability.
Safety Guidelines
- Always wear protective gloves and eye protection.
- Securely anchor the base before performing vertical bending.
- Avoid placing hands near rollers during operation.
- Inspect for roller wear and keep the machine clean after each use.
Maintenance & Care
- Regularly clean rollers to remove debris and ensure smooth contact.
- Check and tighten crank and gear bolts periodically.
- Apply light grease to shafts and gear teeth to maintain smooth operation.
- Store in a dry space to prevent rust or corrosion.
Additional Information
- Included accessories: Sheet-metal base cabinet and standard set of hardened rollers. :contentReference[oaicite:17]{index=17}
- Optional custom rollers: Available on request based on material profile. :contentReference[oaicite:18]{index=18}
- Warranty: Typically 1–2 years (confirm with supplier).
- Manufacturer: Metallkraft (German quality).
