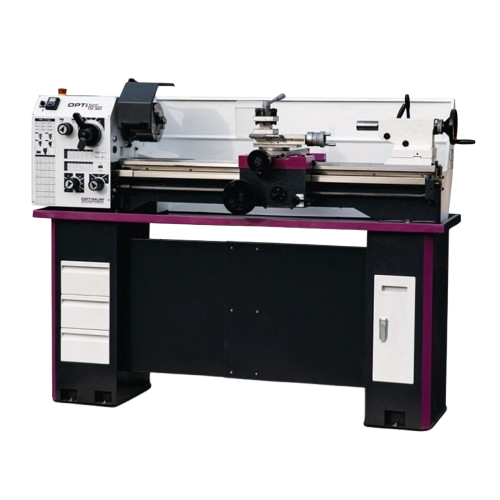

Optimum TM 3110

Manual Lathe

The Optimum TM 3110 is a high-performance manual lathe designed for precision machining in professional workshops. With a swing over bed of 310 mm and a distance between centres of 1000 mm, it offers versatility for various turning operations. The lathe features a powerful 1.1 kW motor, 9-speed gearbox, and a range of threading options, making it suitable for both general and specialized turning tasks.

Technical Specifications

Specification	Details
Motor Power	1.1 kW (1.5 HP)
Voltage	400 V
Speed Range	9 speeds (65 – 2000 rpm)
Swing Over Bed	310 mm
Swing Over Cross Slide	196 mm
Distance Between Centres	1000 mm
Spindle Bore	38 mm
Spindle Nose	Camlock DIN ISO 702-2 No. 4
Tailstock Taper	MK 3
Quill Stroke	100 mm
Quill Diameter	38 mm
Thread Pitch Range	0.4 – 10 mm/rev (29 pitches)
Feed Rate	Automatic longitudinal and transverse feeds
Bed Width	190 mm
Weight	360 kg
Dimensions (L x W x H)	1740 x 740 x 1330 mm

Key Features

High-Precision Spindle: Induction-hardened and precision-ground for accurate machining.
Versatile Speed Control: 9-speed gearbox allows for a wide range of cutting speeds.
Threading Capability: 29 different pitches for various threading applications.
Automatic Feeds: Longitudinal and transverse feeds for efficient material removal.
Sturdy Construction: Heavy-duty design ensures stability during operation.
Safety Features: Emergency stop button and safety covers for user protection.

Recommended Applications

Precision turning of metals and plastics.
Thread cutting and parting operations.
Ideal for tool rooms, repair shops, and small-scale production.

Safety Guidelines

Always wear appropriate personal protective equipment (PPE).
Ensure all safety guards are in place before operation.
Regularly check and maintain the lathe to ensure safe operation.
Follow the manufacturer's instructions for setup and use.

Maintenance & Care

Regularly clean the lathe to remove chips and debris.
Lubricate moving parts as per the manufacturer's recommendations.
Check and replace worn components promptly to maintain performance.

Additional Information

Included Accessories: 3-jaw chuck Ø 160 mm, No. 4, MK 3 fixed centering point, initial oil charge, MK5-MK3 reduction sleeve.
Warranty: 2 years (extendable with online registration).
Product Code: 3403010
