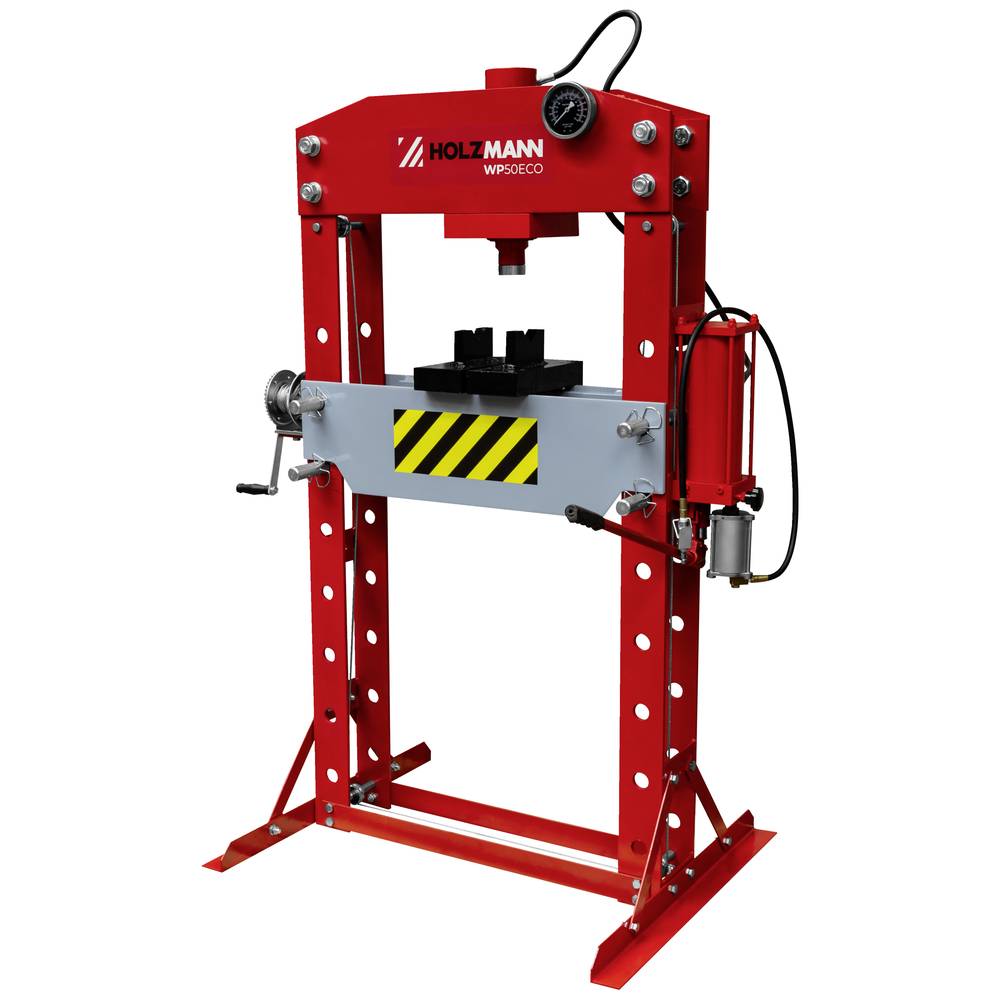

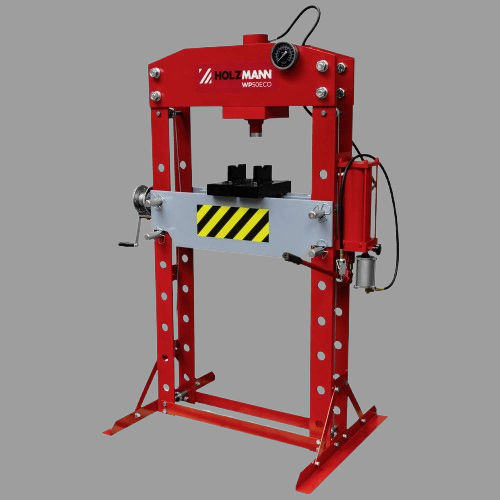

Holzmann Maschinen WP50ECO

Hydraulic Press

The Holzmann Maschinen WP50ECO is a compact and efficient universal metalworking machine engineered for bending, forming, and shaping a variety of metal profiles with precision. Designed with versatility and affordability in mind, the WP50ECO is ideally suited for small to medium-sized workshops and fabrication environments. Featuring a robust steel construction, three driven rollers, and an adjustable top roller, the machine supports both horizontal and vertical operation, making it adaptable to diverse project requirements. Its user-friendly interface and manually operated system allow for high control and repeatability without the complexity of automated setups.

Highlights
Convenient for pressing-, bending- and straightening-works
Manometer indicates the pressure force
Perfect work shop assistance for maintenance and assembling
Solid single stage pneumatic hydraulic cylinder
Automatic piston return
Pressing table height adjustable
Table height adjustmet via crank lever
Pressure control manually via hydraulic hand pump or pneumatic pressure
Incl. compressed air unit with 1/4" connection and working pressure of 7,5-8,5 bar
Workpiece support: 290 x 130 x 125 mm
Press-unit can be moved horicontally

Technical Specifications
Dimensions : 1330 x 850 x 1750 mm (bed width : 700mm)
Pressing power : 50 tons
Stroke : 200 mm Working area : 75 - 1125 mm
Sound pressure level : <70 dB(A)
Gross weight : 270 kg
Net weight : 246,300 kg
Code : 9120058379147
