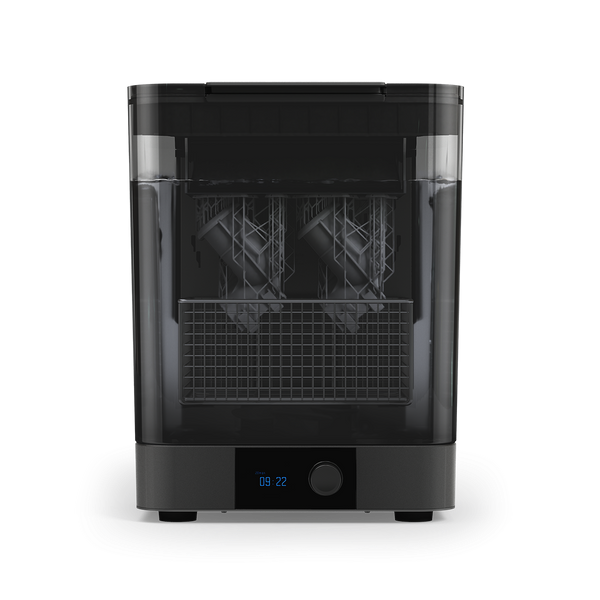

Form Wash

SLA Washing Station

The Form Wash is a professional automated washing station designed to simplify and standardize the post-printing cleaning process of SLA 3D prints. Compatible with all Formlabs SLA printers including the Form 4, it uses a rotating basket and adjustable wash cycles to ensure thorough removal of uncured resin. With a large capacity, easy solvent management, and an intuitive touchscreen interface, the Form Wash enhances print quality and reduces manual labor, making it an essential tool for reliable and consistent post-processing.

Technical Specifications

Specification	Details
Dimensions (W x D x H)	27.4 × 27.4 × 39.3 cm
Weight	7.3 kg
Compatible Printers	Form 3, Form 3B, Form 3L, Form 3BL, Form 4, Form 4B, Form 3+
Wash Capacity	Up to 4 L of isopropyl alcohol (IPA) or other suitable solvents
Wash Volume	Suitable for parts up to 145 × 145 × 175 mm
Wash Mode	Automated agitation with rotating wash basket
Wash Time Settings	Adjustable from 5 to 60 minutes
User Interface	Integrated touchscreen with easy-to-use controls
Cleaning Method	Rotating basket for consistent and thorough cleaning
Solvent Compatibility	Isopropyl alcohol (IPA) recommended; supports other solvents suitable for resin removal
Drainage System	Integrated drain valve for easy solvent removal and change
Power Requirements	100–240 VAC, 50/60 Hz, 1.5 A, 100 W
Connectivity	Standalone device (no network connectivity)
Safety Features	Lid interlock prevents operation when open
Maintenance	Easy access for basket cleaning and solvent replacement
Certifications	CE, FCC, RoHS

Features & Benefits

Efficient post-processing: Automated, hands-free washing reduces manual labor and ensures consistent results.
Large capacity: Accommodates multiple parts or larger prints up to 145 × 145 × 175 mm.
Customizable wash cycles: Adjustable wash times fit different resin types and part sizes.
Rotating wash basket: Ensures even solvent flow and thorough cleaning of complex geometries.
Easy solvent management: Integrated drain valve simplifies solvent changes and disposal.
User-friendly interface: Responsive touchscreen simplifies operation and cycle monitoring.
Compatibility: Works seamlessly with all Formlabs desktop SLA printers, including the latest Form 4 and Form 4B.
Safety features: Lid interlock prevents accidental exposure to solvents during operation.

Recommended Workflow Integration

Print Completion: Remove the printed parts from the Form 3 or Form 4.
Initial Rinse: Place parts in the Form Wash basket.
Select Wash Time: Choose the appropriate wash duration based on resin type and part size.
Start Wash: Automated rotation agitates parts in solvent to remove uncured resin.
Post-Wash Drying: After washing, remove parts and allow to dry before curing.
Cure: Use Form Cure or other curing stations for final post-processing.

Safety and Handling

Use recommended solvents (IPA preferred) and ensure proper ventilation during washing.
Follow local regulations for solvent disposal.
Always keep the lid closed during operation to minimize solvent vapors.
Wear appropriate personal protective equipment when handling uncured resin and solvents.

Maintenance Tips

Regularly change the solvent to maintain wash effectiveness.
Clean the rotating basket periodically to prevent resin buildup.
Inspect and clean the drain valve to avoid clogs.
Wipe down exterior surfaces to keep the device clean and operational.
