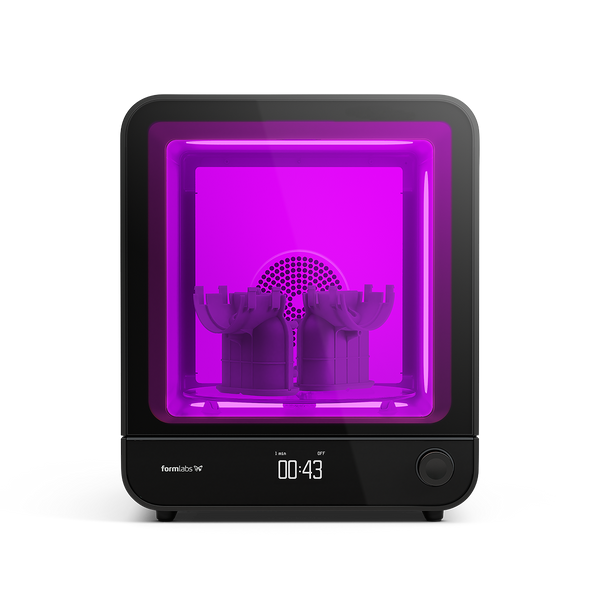

Form Cure (2nd Generation)

SLA Post-Curing Station

The Formlabs Form Cure is a professional post-curing solution designed to enhance the mechanical properties, accuracy, and surface finish of SLA 3D printed parts. It uses a combination of precise heat and 405 nm UV light to fully cure resin prints, ensuring optimal performance and mechanical stability. With validated material profiles, it integrates seamlessly into Formlabs' workflow, particularly for high-performance resins and medical-grade materials (with Form 4B).

Technical Specifications

Feature	Form Cure (2nd Gen)
Compatible Printers	Form 4, Form 4B, Form 3/3+/3B/3B+, Form 2
Dimensions (W × D × H)	33.7 × 40.4 × 37.2 cm (13.3″ × 15.9″ × 14.0″)
Height with Open Door	64 cm
Weight	5.6 kg (12.4 lb)
Rotating Turntable Diameter	19.3 cm (7.6″)
Max Part Height	18.5 cm (7.28″)
Max Temperature	80 °C (176 °F)
Light Source	13 multidirectional LEDs – 405 nm
LED Power Output	39 W (optical output: 9.1 W)
Heating Speed	Up to 60 °C in ~60 seconds, 80 °C in ≤150 s
Power Requirements	90–240 VAC, 6 A, 50/60 Hz, 144 W

Performance

Ultra-fast curing: Up to 4× more UV power and 5× faster heating than previous generation.
Chamber size: ~30% larger than the original Form Cure.
Rapid cycle times:
- Model resins: Fully cured in 60 seconds
- Biocompatible/dental resins: Fully cured in under 10 minutes

Workflow Integration

Pre-validated settings: Auto-loaded resin profiles ensure consistent curing.
Control Options: 3.5" interactive touchscreen and remote management via Dashboard.
Uniform Exposure: Rotating glass turntable ensures even UV exposure.
Smart Sensors: Automatically regulate curing temperature, time, and intensity.

Safety & Quality

Certifications: CE and UL compliant for safe professional use.
Sealed Curing Chamber: Enables continuous, unattended curing cycles.
Sensor-Driven Automation: Real-time monitoring of light, heat, and part status.

Why Choose Form Cure?

Extremely short post-curing times – as fast as 1 minute for standard parts.
Maximized mechanical properties – unlock full resin performance.
Seamless integration – works with PreForm and Dashboard.
Versatile – suitable for engineering, dental, and biocompatible resins.

Quick Summary

Form Cure (2nd Gen) is a fast, powerful, and precise post-curing unit:
33.7 × 40.4 × 37.2 cm • 5.6 kg • rotating glass turntable Ø 19.3 cm • max part height 18.5 cm • up to 80 °C • 405 nm UV LEDs • 60–150 s heat-up • typical cure times: 60 s to <10 min.
