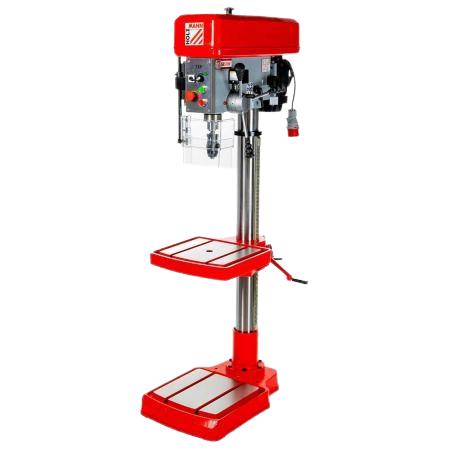

Technical Specifications
| Specification | Details |
|---|---|
| Motor Power (S1) | 1,100 W |
| Voltage / Phase | 400 V / 3~ / 50 Hz |
| No-Load Spindle Speed (I) | 50–600 min⁻¹ |
| No-Load Spindle Speed (II) | 50–2,100 min⁻¹ |
| Max Drilling Capacity (Steel) | Ø 32 mm |
| Max Thread Size | M14 |
| Spindle Taper | MK4 / MT4 |
| Spindle Stroke | 135 mm |
| Max Spindle-to-Table Height | 815 mm |
| Max Spindle-to-Base Height | 1,160 mm |
| Table Size | 410 × 380 mm |
| Table Load Capacity | 60 kg |
| Column Diameter | 98 mm |
| Base Dimensions | 650 × 440 mm |
| Machine Dimensions (H x W x D) | 1,770 × 830 × 550 mm |
| Weight (Net/Gross) | 201 kg / 226 kg |
| Sound Power / Pressure Levels | 88.1 dB(A) / 73.1 dB(A) |
| Protection Class | IP22 |
| Cable Length | 1.8 m |
| Chuck Included | Keyless chuck 1–16 mm (B16 taper) |
Key Features
- Stepless speed control: Frequency converter with LCD display ensures precise rpm settings. :contentReference[oaicite:1]{index=1}
- Heavy-duty build: Solid cast base, polished steel column, spindle guard, and rack-adjustable table. :contentReference[oaicite:2]{index=2}
- Wide speed range: 50–2,100 rpm cover fine to heavy drilling operations. :contentReference[oaicite:3]{index=3}
- High capacity: Capable of drilling up to Ø 32 mm in steel with M14 threading. :contentReference[oaicite:4]{index=4}
- Generous workspace: Large table, extensive spindle travel, and significant spindle-to-base distance. :contentReference[oaicite:5]{index=5}
- User conveniences: Depth stop, tilting table, chip tray with T-slots for workholding. :contentReference[oaicite:6]{index=6}
Recommended Applications
- Metal fabrication and shop-floor drilling
- Through-hole drilling, tapping, and precise depth control drills
- Toolmaking, prototyping, and maintenance workshop tasks
Safety Guidelines
- Always use protective eyewear and ear defenders.
- Ensure stable machine installation and use the spindle guard.
- Disconnect power before service or bit changes.
- Maintain a clean work area and use proper clamping.
Maintenance & Care
- Keep column, table, and base clean to preserve alignment.
- Lubricate spindle shaft and table tilt mechanisms regularly.
- Inspect spindle bearings and chuck operation periodically.
- Replace the keyless chuck if worn or damaged.
Additional Information
- Accessories available: Flexible lamp, drill set, safety clamping kit.
- Manufacturer: Holzmann Maschinen (Austria)
- Product Code: SB510V_400V
- EAN: 9120058378003
📎 Official product link:
https://www.holzmann-maschinen.at/EN/drill-press-12104
