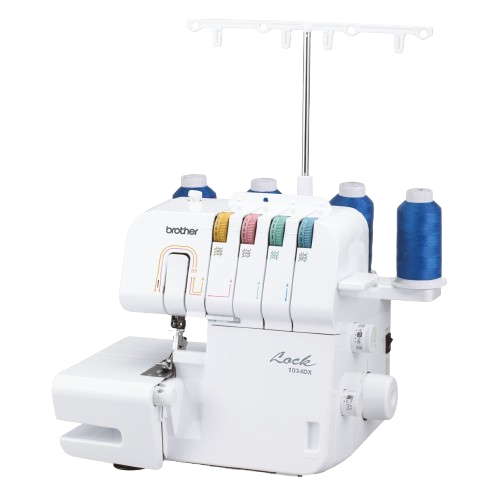

Brother 1034DX

Overlock Machine

The Brother 1034DX is a 4-thread overlock machine designed for both beginners and intermediate users looking for professional-style seam finishes at home. It features a heavy-duty metal frame, colour-coded threading guides, and a trim-trap container to collect waste fabric, streamlining the serging process. With a maximum speed of up to 1,300 stitches per minute, it efficiently handles a variety of fabrics—knits, wovens, light to medium weight—with options for narrow hem and rolled hem finishing.

Technical Specifications

Feature	Specification
Maximum sewing speed	Up to ~ 1,300 stitches per minute
Stitch length	~ 2.0 – 4.0 mm
Stitch width	~ 5.0 – 7.0 mm
Number of threads	4
Differential feed ratio	0.7 – 2.0 (adjustable)
Frame / construction	Metal frame, durable build
LED Work light	Yes
Colour-coded threading guides	Yes — for easier threading
Trim trap for waste fabric	Yes — built-in collection bin
Free arm capability	Yes — for sewing sleeves, cuffs etc.
Included presser feet / accessories	Multiple (standard foot, blind hem foot, gathering foot, etc)
Weight	~7.0 kg
Dimensions (approx.)	28.5 × 29.7 × 33.8 cm
Usage suitability	Knits, wovens, narrow/rolled hems, finishing seams on light to medium fabrics

Highlights

Differential feed (to prevent stretching or puckering of fabrics)
Adjustable stitch width and length
LED lighting
